Speed limiter

/

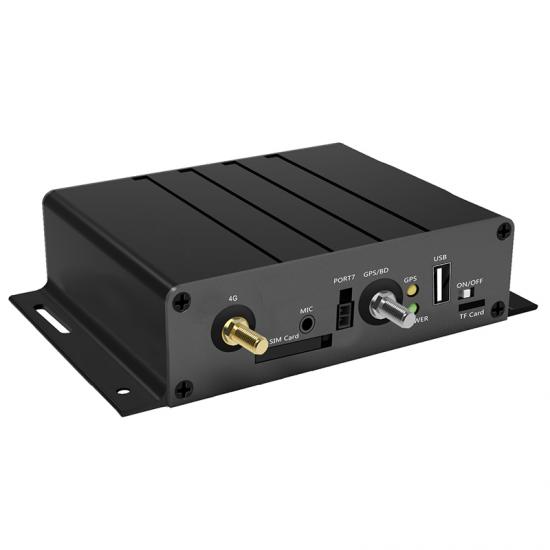

HB-A3B

/GPS Tracker and speed limiter

GPS Tracker and speed limiter

HB-A3 GPS Tracker and speed limiter is a product which can control vehicle speed to prevent driver from over speed driving, As most of the traffic accident is caused by over speed driving, this product is a really useful thing to make your traveling safe.
  • Item NO.:

    HB-A3B
  • Network:

    2G/3G/4G Optional
  • Optional accessories:

    Relay, SOS button, MIC, Intercom, Camera, Printer, Different sensors, RFID, Drive-by-wire pedal
  • Product Detail
  • Equipment Function
  • Equipment Parameter

GPS Tracker and speed limiter

HB-A3B is a high ending GPS vehicle tracker and speed limiter with strong extensibility. It can connect to external SOS button, relay, camera, mic, etc. Simultaneously, this product has multiple of I/O port and RS232 port to connect to external accessories. Such as fuel sensor, temperature sensor, RFID and printer etc.

The device can meet and solve the problem,  that interfaces with the pedal of the vehicle to limit its speed. There are two modes of speed limit, one is pulse speed, which is controlled by the vehicle’s pulse speed wire, and the other is GPS speed, using GPS to monitor road signs, to detect the speed limit where the vehicle is travelling.

This device is definitely the best one for your comprehensive tracking and fleet management solutions.


GPS speed limiter

- 2G / 3G / 4G (Option)

- Real-time GPS tracking
- Geo-fences
- ACC status detection
- Over speed alarm
- Power cut alarm
- Low voltage alarm
- Abnormal GPS antenna alarm
- SOS alarm (SOS button)
- Cut fuel and power, Speed limit (Relay, Support mechanical valves)
- Audio monitoring (MIC or Intercom)
- Photo snapshot (Camera)
- Fuel monitoring (Fuel sensor)
- Temperature monitoring (Temperature sensor)
- Print vehicle trip data (Printer)
- CANBus (Option)

HB-A3B GPS Tracker and speed limiter
Function Parameter Note
Communication 2G Option The module varies by region or project.
3G
4G
Positioning Mode GPS/BDS Support to provide single GPS module or change according to project requirements.
Sensitivity
Capture: -148dBm
Track: -162dBm
Start Time 36s
Voice Buzzer Built-in buzzer Supports speeding alarm, fatigue alarm and driver not logged in alarm.
USB USB USB 2.0 Collect device data or perform local upgrade through U disk.
CANBUS CANBUS Default J1939 protocol Other protocols are not currently supported. If have required of project, can be custom development.
Speed limit  Device log Record device on/off, speeding, cut pulse velocity line, cut GPS antenna.
Speed warning When the vehicle speed is close to the limit threshold, the buzzer will alarm. Example: Set a speed limit of 80km/h, and an alarm will be triggered when the vehicle speed reaches 75km/h.
Judgment method GPS/Pulse speed Judge whether the speed limit threshold is reached by GPS speed or vehicle pulse speed.
Configure speed limit parameters Support Default 80km/h
Black box Driving record 1 s/data can store 48 hours of records. Record vehicle speed, Vehicle status and driving time.
Location record 60 s/data can store 360 hours of records. Record the position coordinates and average speed of the vehicle.
Accident doubt Store 20 second record (0.2 s/data, total 100 data) before parking. Record the speed, time, status and location of the vehicle.
Fatigue driving Record the start/end time and location information of fatigue driving. Related parameters can be set.
Driver ID info Record driver information. Realized by RFID or Ibutton.
Mileage statistics Record driving mileage Accuracy: 0.1 km
Device info Record of device: VIN, Vehicle plate, Pulse coefficient, Initial installation time/mileage.
Device log Record device on/off and parameter modification data. The last 100 data, loop coverage.
Hardware Working voltage 9V-36V
Working current 100mA
Working temperature  -30℃~+70℃
Storage temperature  -40℃~+85℃
Battery 400mAh Standby time: 2 hours
Size 130 * 83 * 31mm
Protection level IP43
Weight 210g

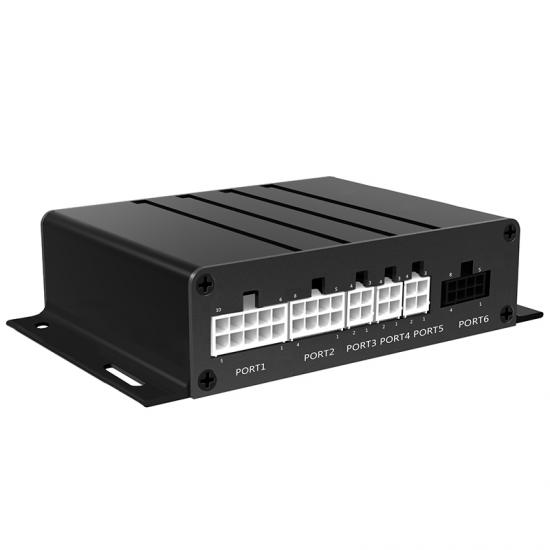

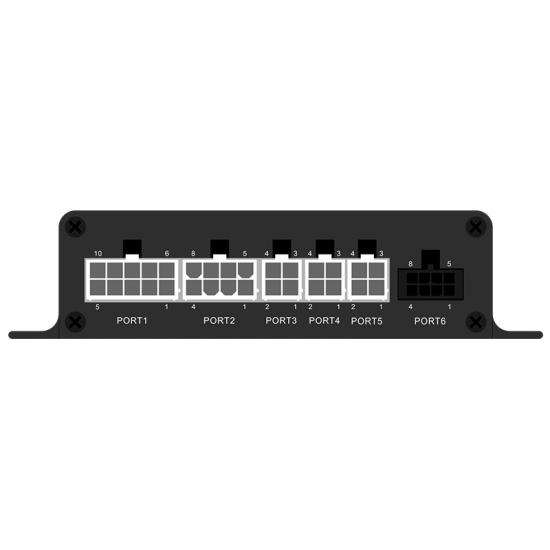

Interface ACC detection 1
SOS alarm 1 Connect the SOS button.
Digital input 3
AD input 3 2 channels 0-33V and 1 channel 0-5V.
Digital output 3
Serial port 4 RS232 port, connect external accessories.
CANBUS 1 J1939
SIM card 1
Communication antenna 1 External antenna
GPS antenna 1 External antenna
Pulse speed 1
USB port 1
Micro SD card 1
Audio output 1 Connect the MIC
